Overloaded shard example

This article describes an example of how to diagnose overloaded shards and resolve the issue.

For more information about overloaded shards and their causes, see Overloaded shards.

The article begins by stating the problem. Then, we'll examine diagrams in Grafana and information on the Diagnostics tab in the Embedded UI to solve the problem and observe the solution in action.

At the end of the article, you can find the steps to reproduce the situation.

Initial issue

You were notified that your system has started taking too long to process user requests.

Note

These requests access a row-oriented table, which is managed by data shards.

Let's examine the Latency diagrams in the DB overview Grafana dashboard to determine whether the problem is related to the YDB cluster:

DB Overview > Latencies > R tx server latency percentiles

See the diagram description

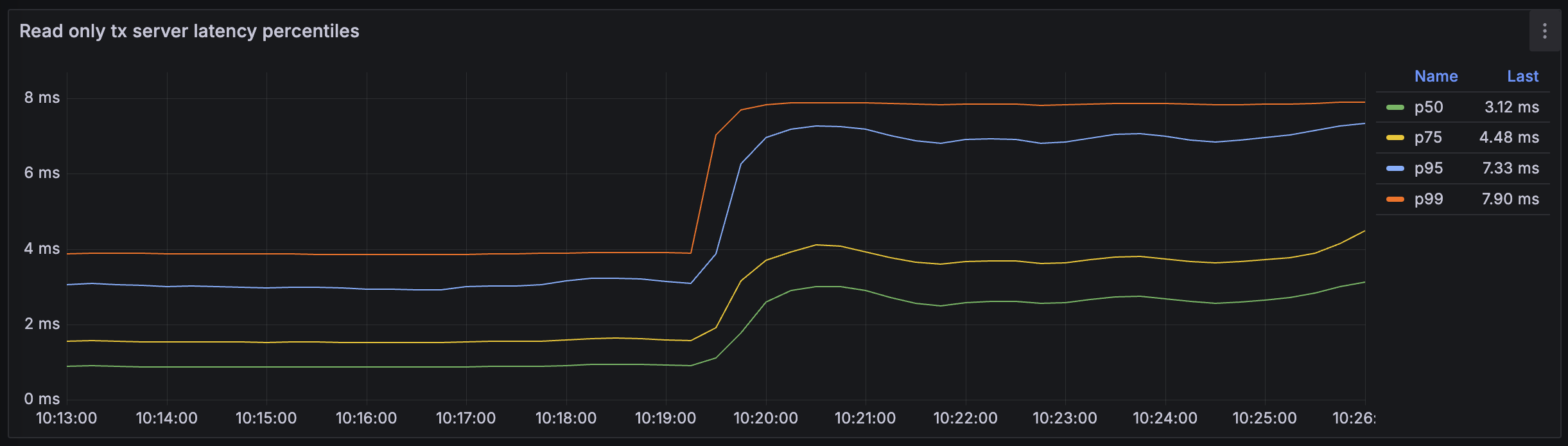

The diagram shows transaction latency percentiles. At approximately 10:19:30, these values increased by two to three times.

DB Overview > Latencies > Read only tx server latency

See the diagram description

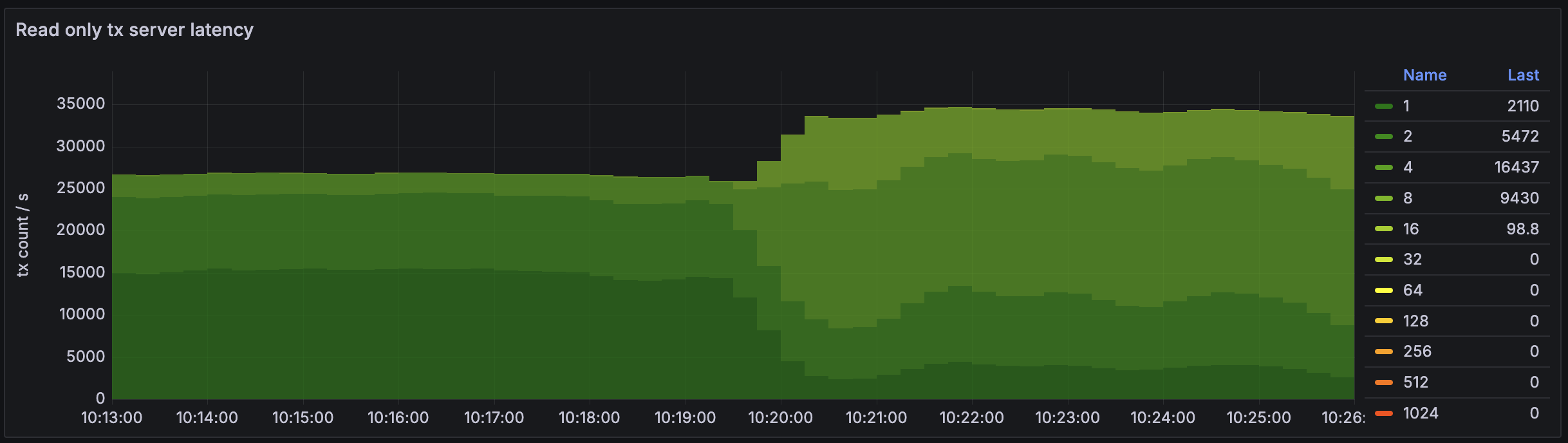

The diagram shows a heatmap of transaction latencies. Transactions are grouped into buckets based on their latency, with each bucket represented by a different color. This diagram displays both the number of transactions processed by YDB per second (on the vertical axis) and the latency distribution among them (with color).

By 10:20:30, the share of transactions with the lowest latencies (Bucket 1, dark green) had dropped by four to five times. Bucket 4 grew by approximately five times, and a new group of slower transactions, Bucket 8, appeared.

Indeed, the latencies have increased. Now, we need to localize the problem.

Diagnostics

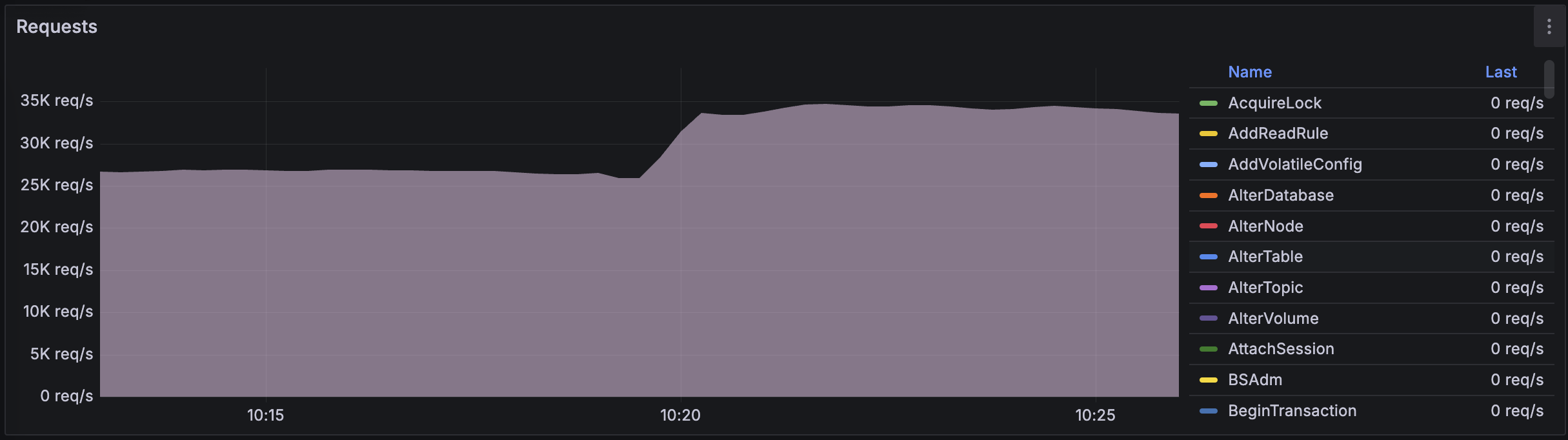

Let's determine why the latencies increased. Could the cause be an increased workload? Here is the Requests diagram from the API details section of the DB overview Grafana dashboard:

API details

The number of user requests increased from approximately 27,000 to 35,000 at around 10:20:00. But can YDB handle the increased load without additional hardware resources?

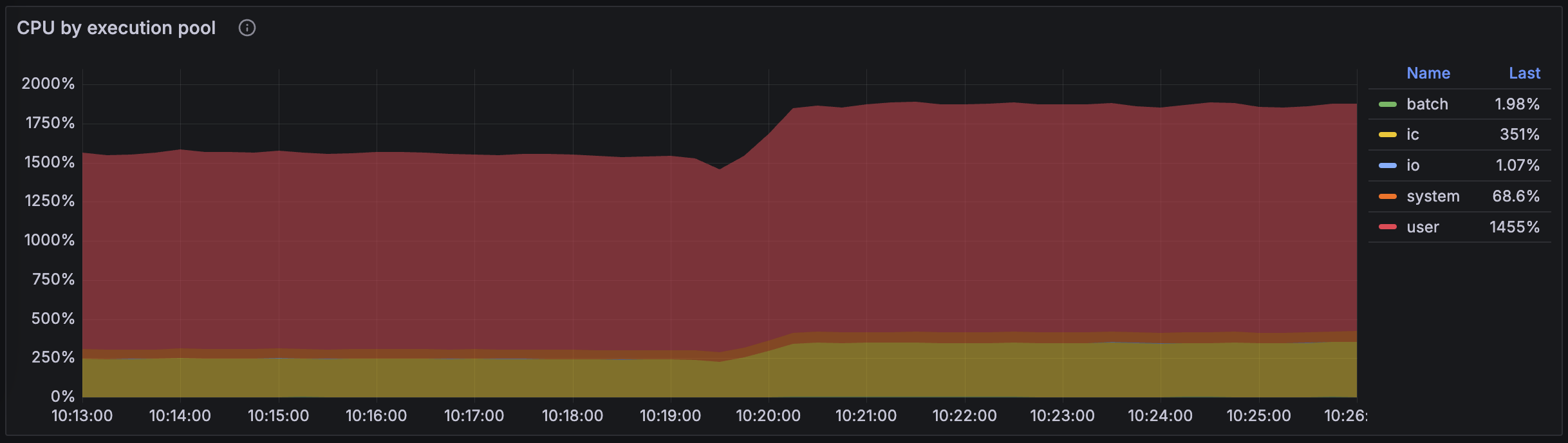

The CPU load has increased, as shown in the CPU by execution pool diagram.

CPU

See the details on the CPU Grafana dashboard

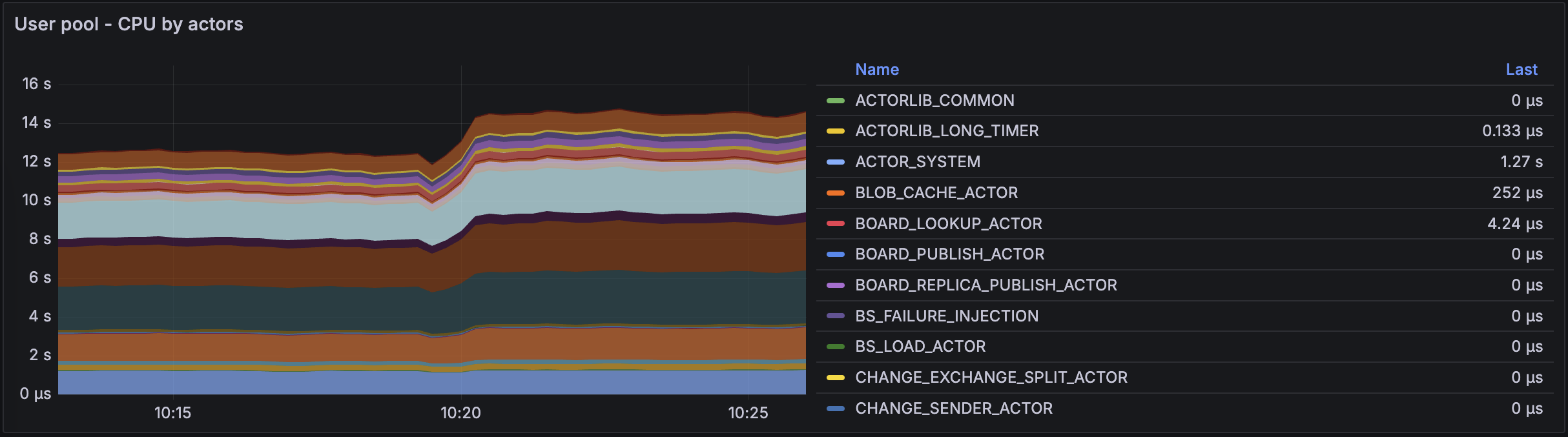

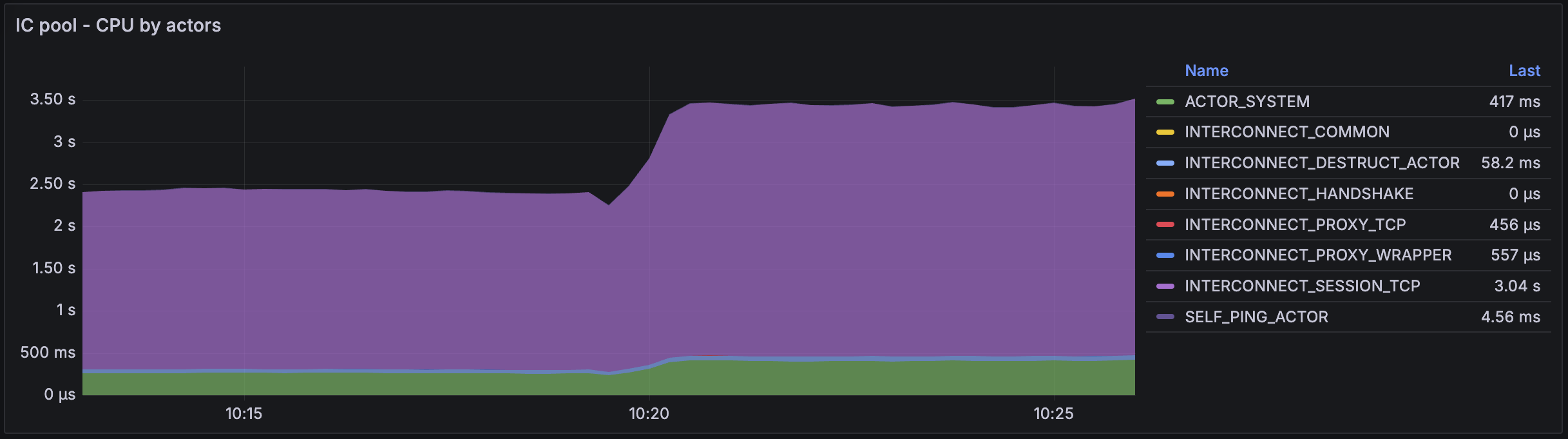

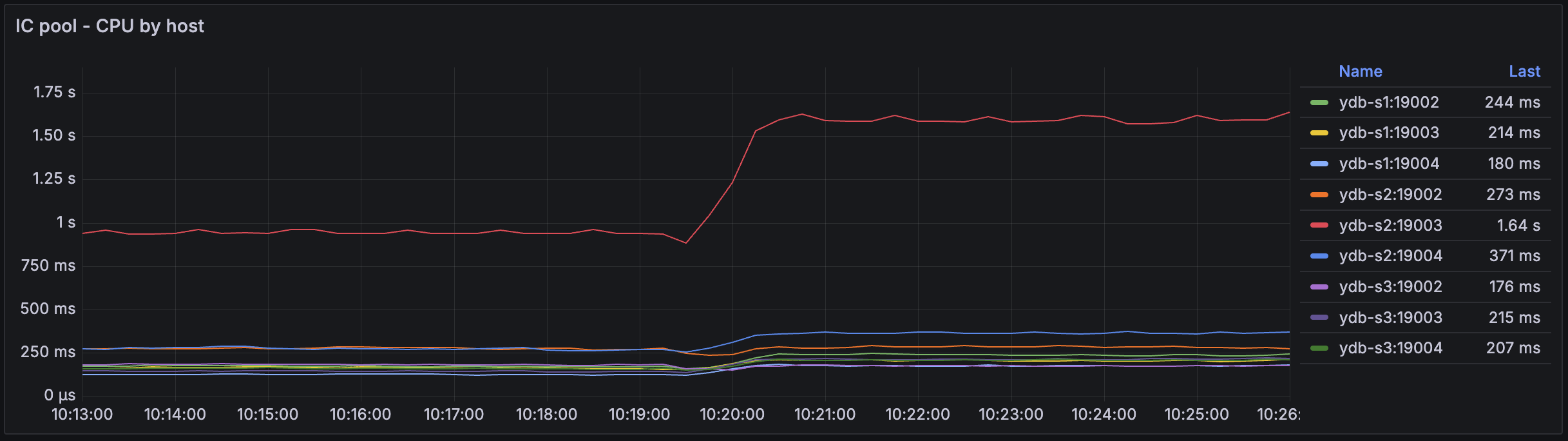

Examining the CPU Grafana dashboard reveals that CPU usage increased in the user pool and the interconnect pool:

CPU

CPU

CPU

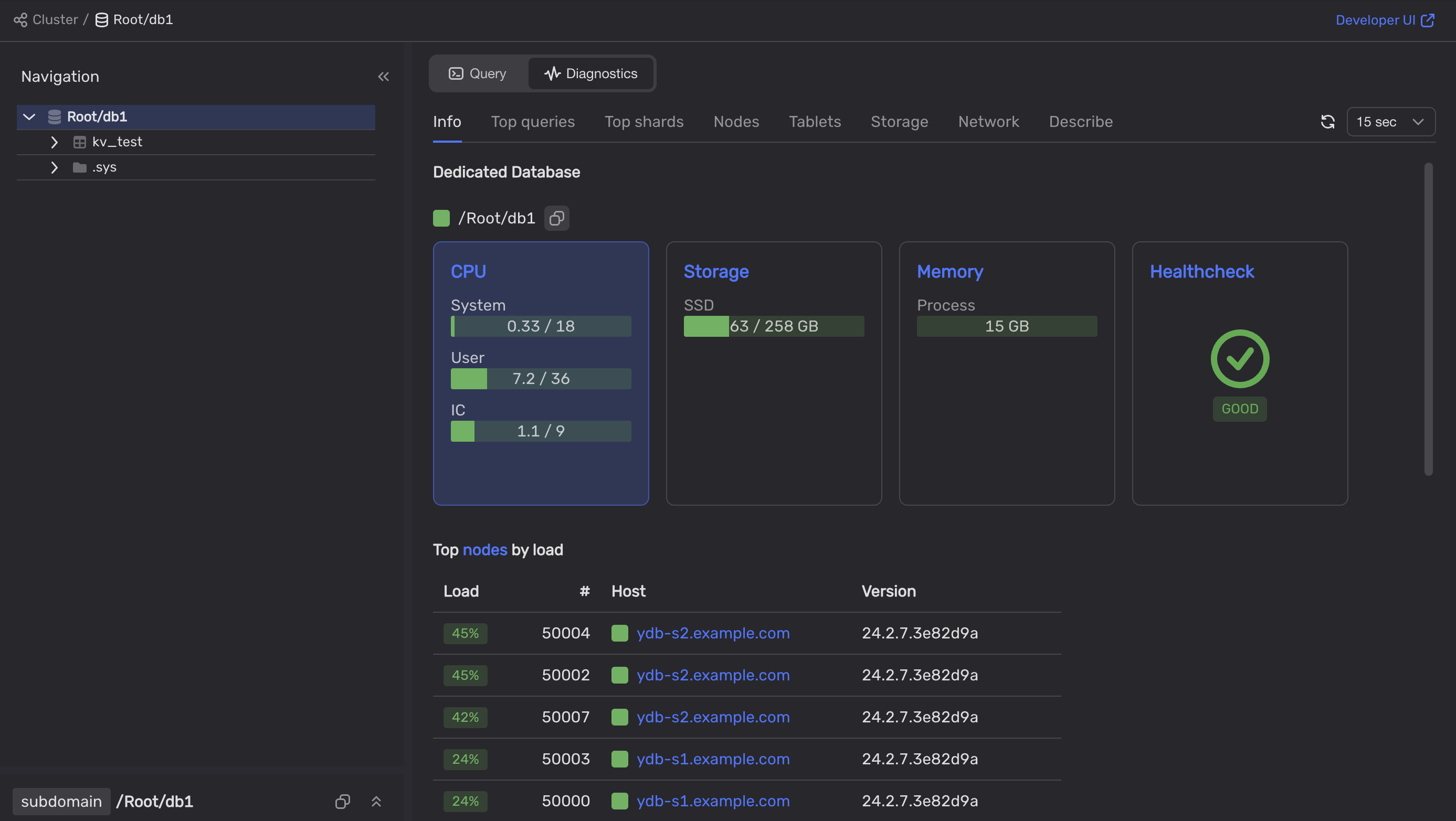

We can also observe overall CPU usage on the Diagnostics tab of the Embedded UI:

CPU diagnostics

The YDB cluster appears not to utilize all of its CPU capacity.

By inspecting the DataShard and DataShard details sections of the DB overview Grafana dashboard, we can see that after the cluster load increased, one of its data shards became overloaded.

Throughput

See the diagram description

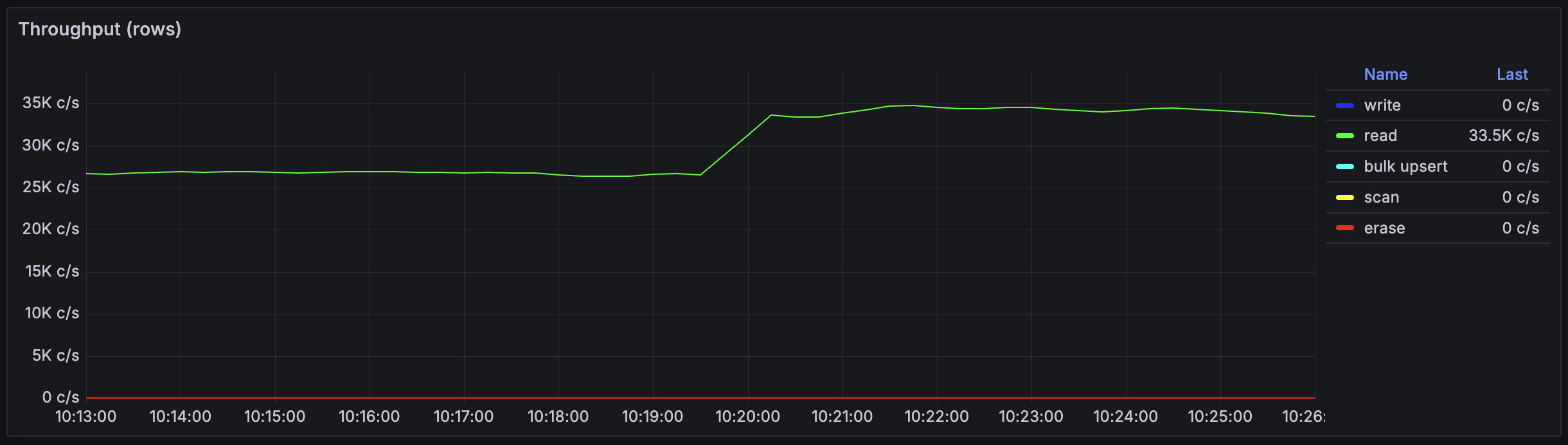

This diagram shows that the number of rows read per second in the YDB database increased from approximately 26,000 to 33,500 rows per second.

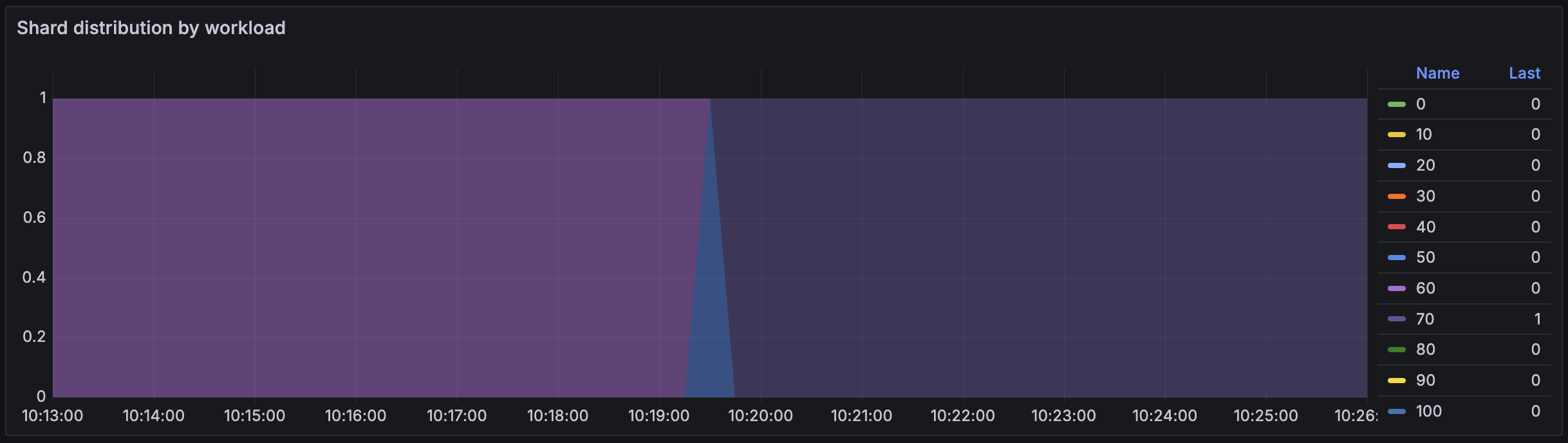

Shard distribution by load

See the diagram description

This diagram shows a heatmap of data shard distribution by workload. Data shards are grouped into ten buckets based on the ratio of their current workload to full computing capacity. This allows you to see how many data shards your YDB cluster currently runs and how loaded they are.

The diagram shows only one data shard whose workload changed at approximately 10:19:30—the data shard moved to Bucket 70, which contains shards loaded to between 60% and 70% of their capacity.

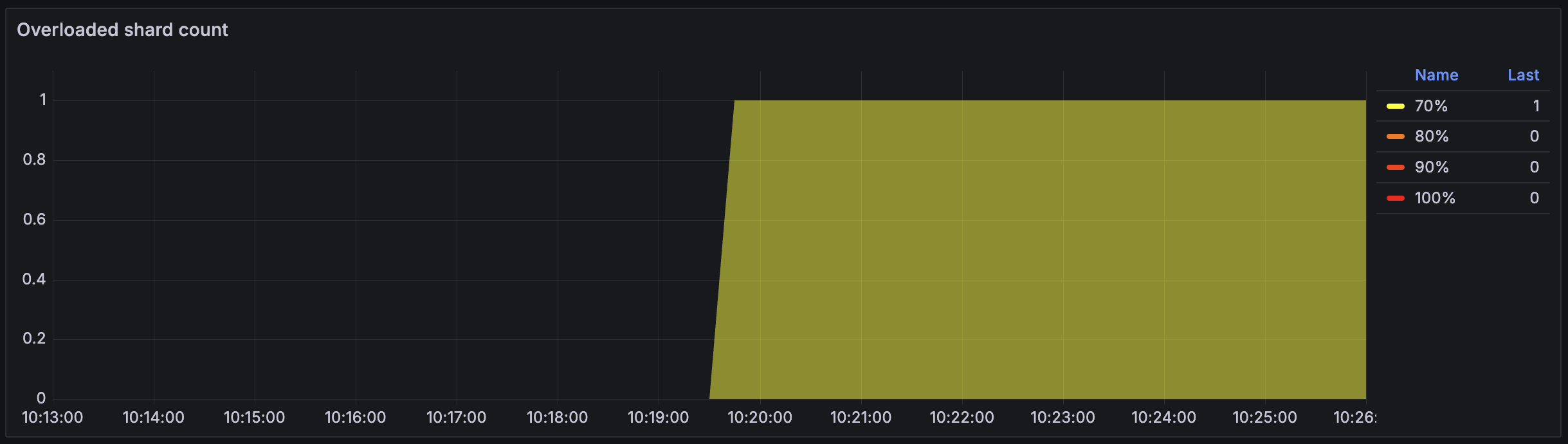

Overloaded shard

See the diagram description

Similar to the previous diagram, the Overloaded shard count is a heatmap of data shard distribution by load. However, it displays only data shards with a workload exceeding 60%.

This diagram shows that the workload on one data shard increased to 70% at approximately 10:19:30.

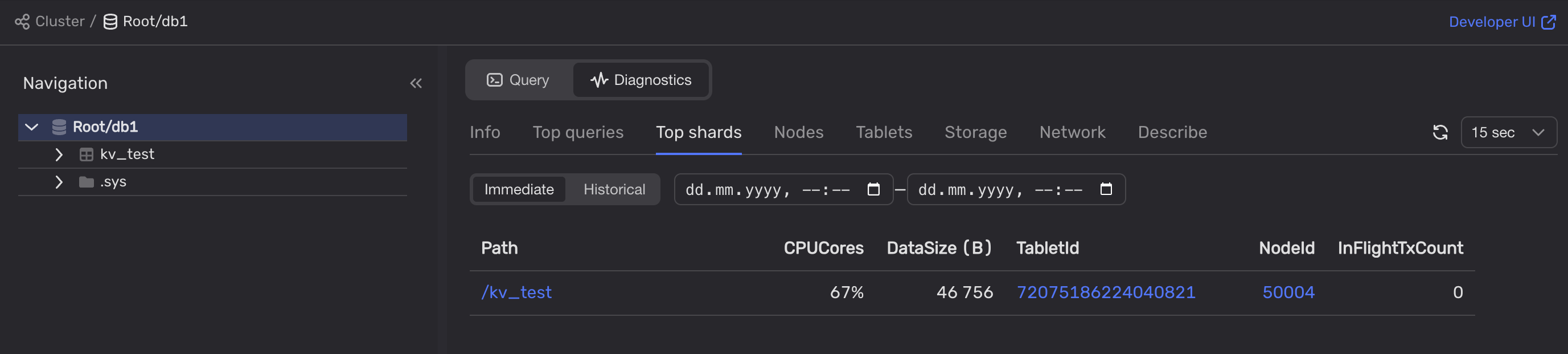

To determine which table the overloaded data shard is processing, let's open the Diagnostics > Top shards tab in the Embedded UI:

Diagnostics > shards

We can see that one of the data shards processing queries for the kv_test table is loaded at 67%.

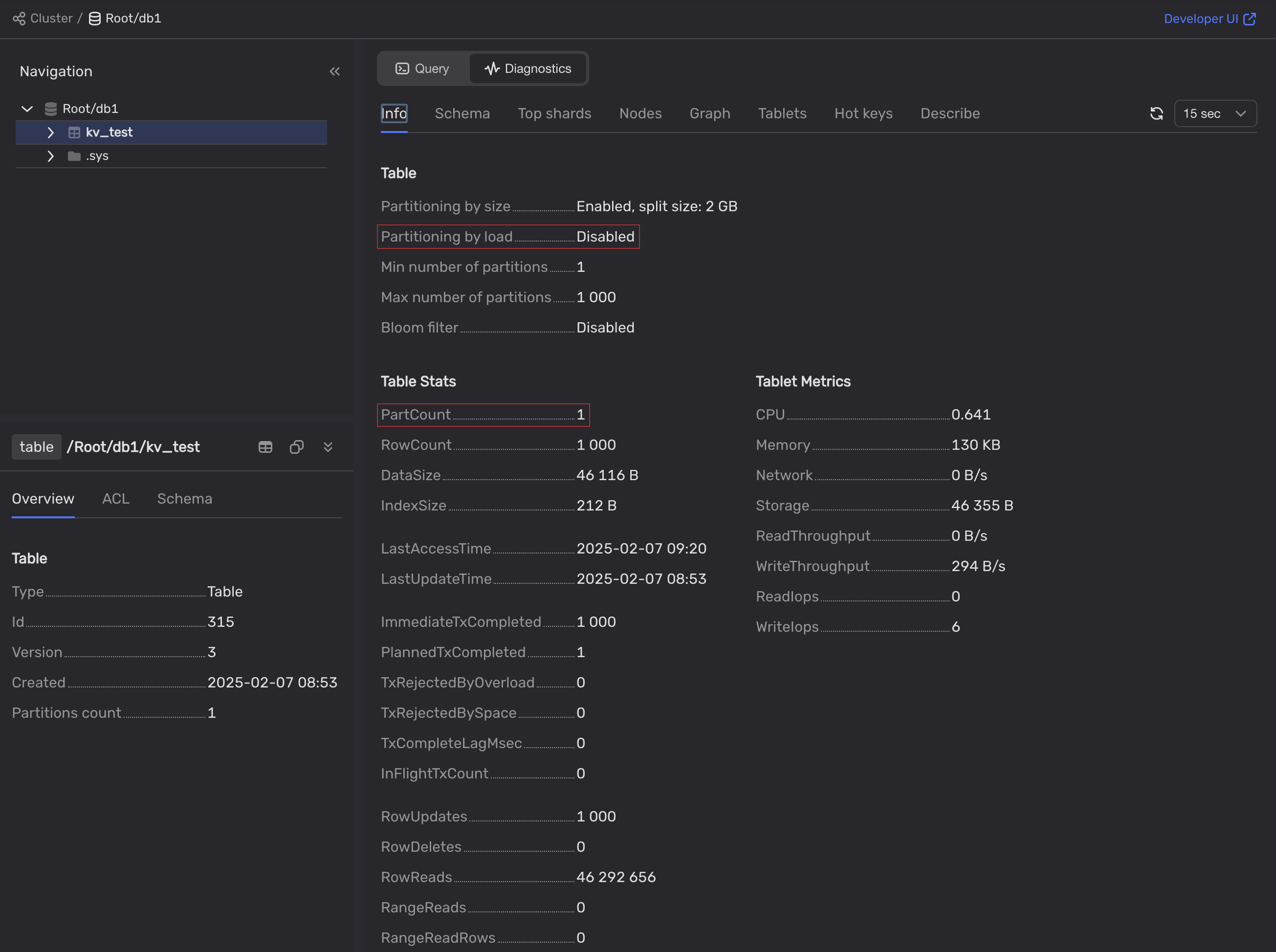

Next, let's examine the kv_test table on the Info tab:

stock table info

Warning

The kv_test table was created with partitioning by load disabled and has only one partition.

This means that a single data shard processes all requests to this table. Since data shards are single-threaded and thus can handle only one request at a time, this is a poor practice.

Solution

We should enable partitioning by load for the kv_test table:

  1. In the Embedded UI, select the database.

  2. Open the Query tab.

  3. Run the following query:

    ALTER TABLE kv_test SET (
        AUTO_PARTITIONING_BY_LOAD = ENABLED
    );


Aftermath

When we enable automatic partitioning for the kv_test table, the overloaded data shard splits into two.

Shard distribution by load

See the diagram description

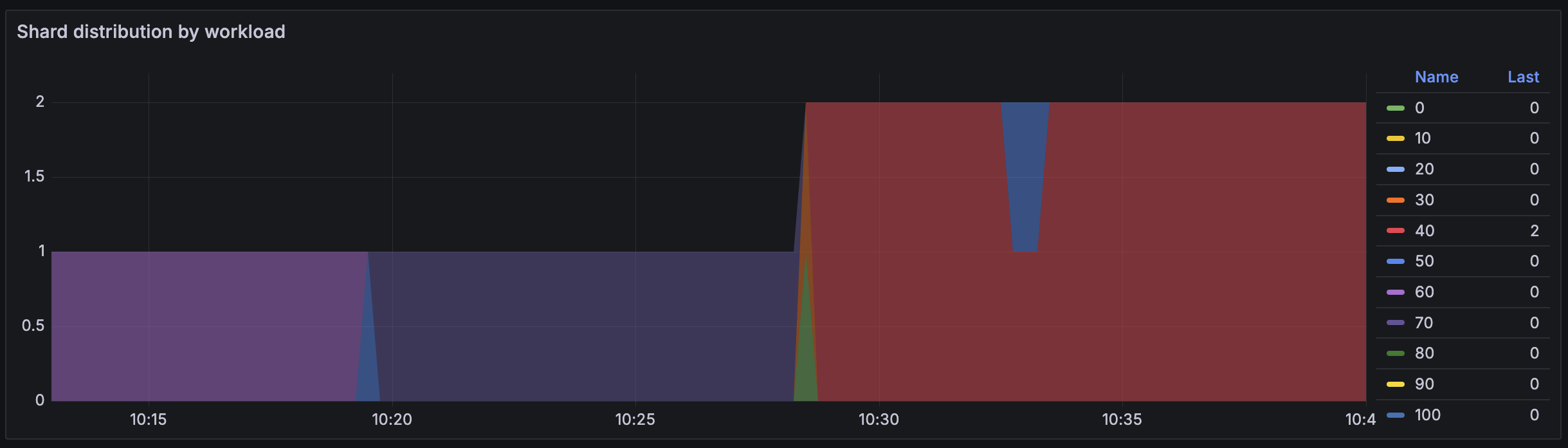

The diagram shows that the number of data shards increased at about 10:28:00. Based on the bucket color, their workload does not exceed 40%.

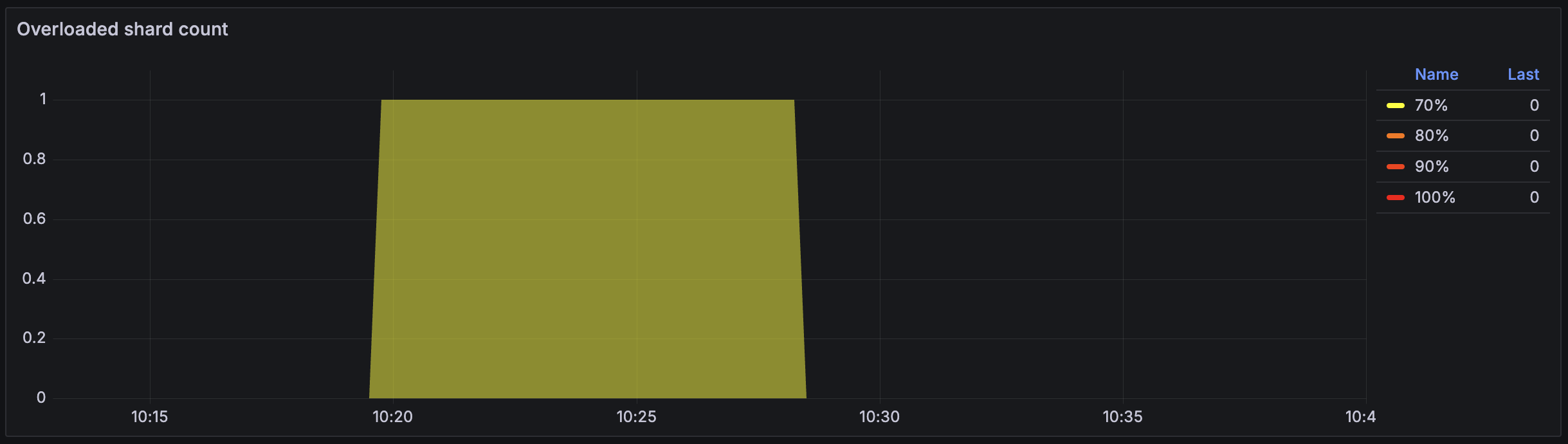

overloaded shard count

See the diagram description

The overloaded shard disappeared from the diagram at approximately 10:28:00.

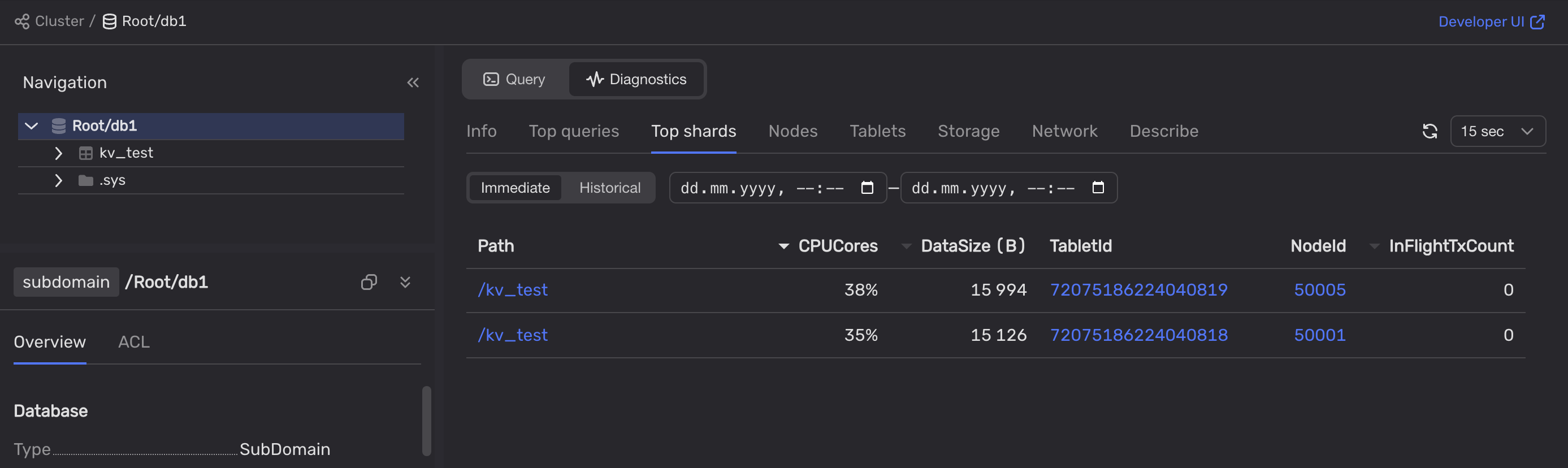

Now, two data shards are processing queries to the kv_test table, and neither is overloaded:

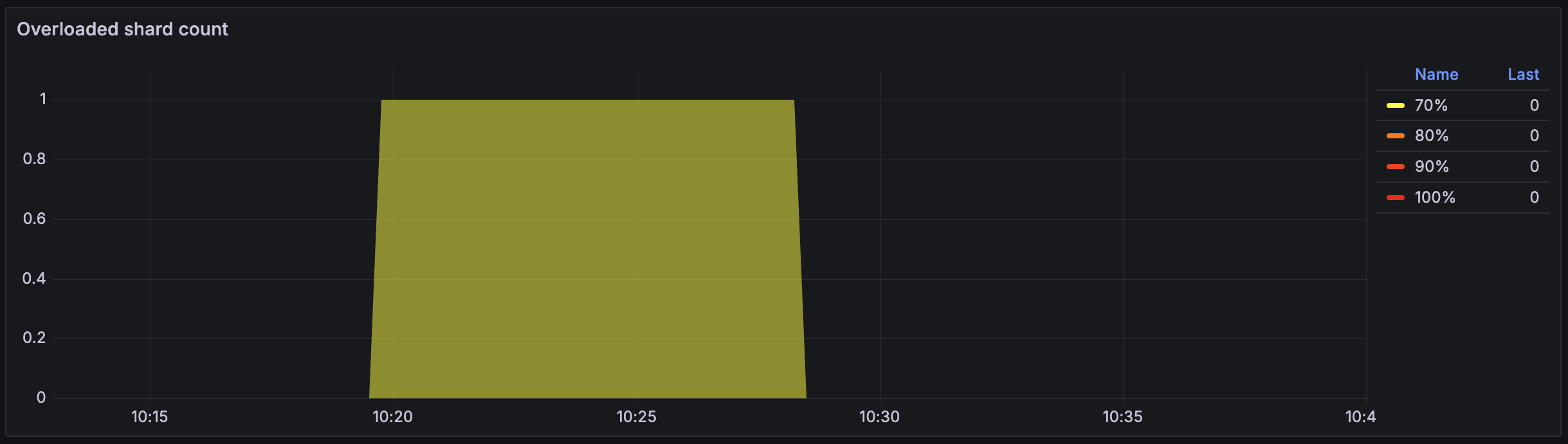

Overloaded shard count

Let's confirm that latencies have returned to normal:

Final latency percentiles

See the diagram description

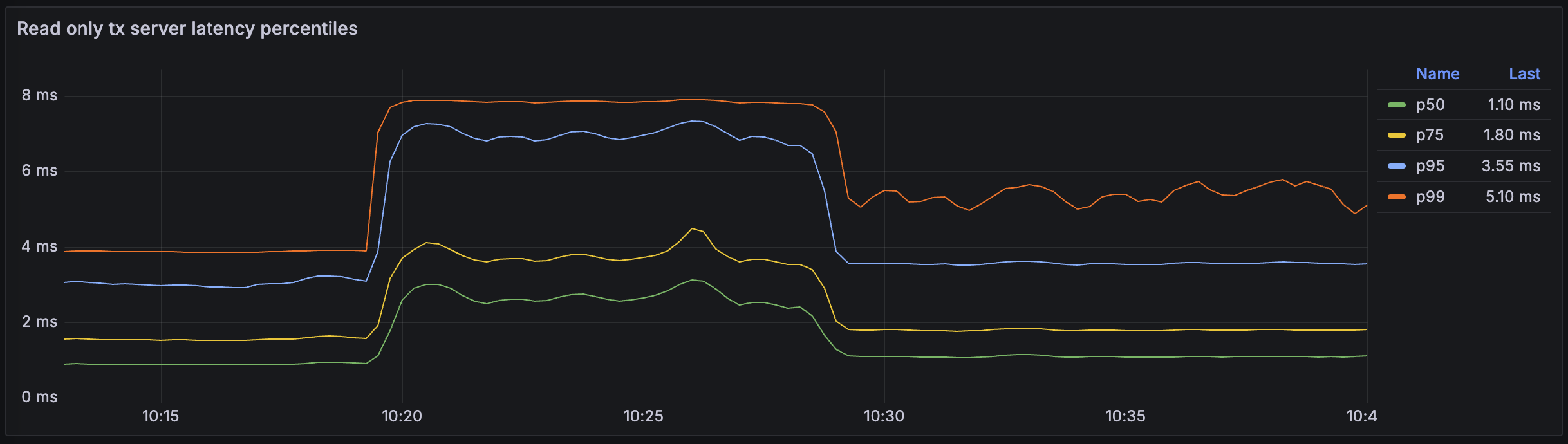

At approximately 10:28:00, the p50, p75, and p95 latency percentiles dropped almost to their original levels. The decrease in p99 latency is less pronounced but still shows a twofold reduction.

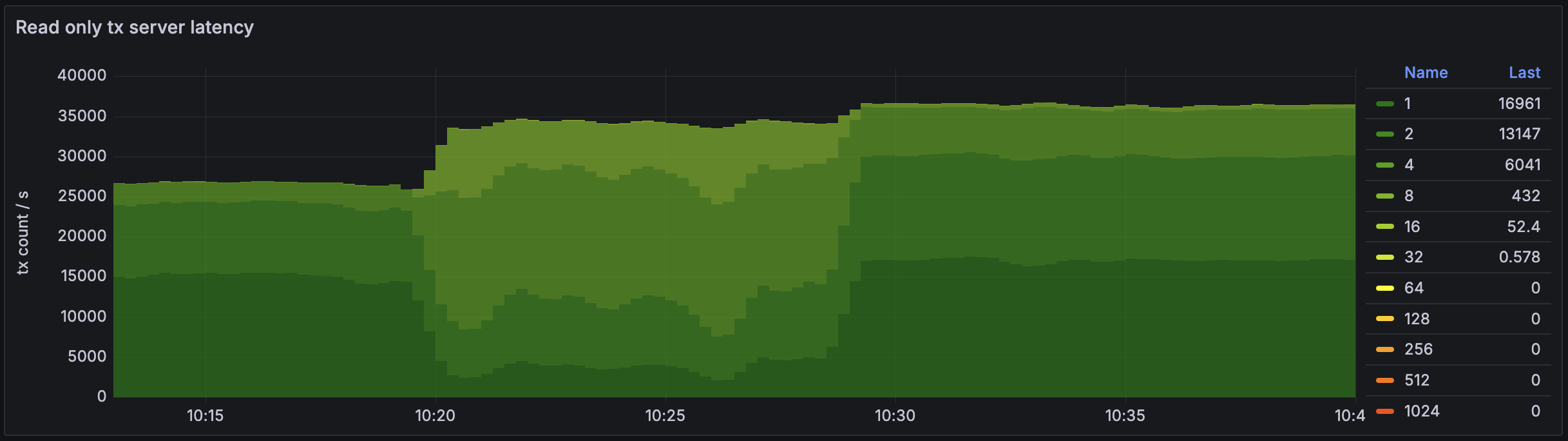

Final latencies

See the diagram description

The diagram shows that transactions are now grouped into six buckets. Approximately half of the transactions have returned to Bucket 1, meaning their latency is less than one millisecond. More than a third of the transactions are in Bucket 2, with latencies between one and two milliseconds. One-sixth of the transactions are in Bucket 4. The sizes of the other buckets are insignificant.

The latencies are almost as low as they were before the workload increased. We did not increase the system costs by introducing additional hardware resources. We've only enabled automatic partitioning by the load, which allowed us to use the existing resources more efficiently.

Bucket name

Latencies, ms

Single overloaded data shard,
transactions per second

Multiple data shards,
transactions per second

1

0-1

2110

16961

2

1-2

5472

13147

4

2-4

16437

6041

8

4-8

9430

432

16

8-16

98.8

52.4

32

16-32

0.578

Testbed

Topology

For this example, we used a YDB cluster consisting of three servers running Ubuntu 22.04 LTS. Each server runs one storage node and three database nodes belonging to the same database.

Hardware configuration

The servers are virtual machines with the following computing resources:

  • Platform: Intel Broadwell
  • Guaranteed vCPU performance: 100%
  • vCPU: 28
  • RAM: 32 GB
  • Storage:
    • 3 x 93 GB SSD per storage node
    • 20 GB HDD for the operating system

Test

The load on the YDB cluster was generated using the ydb workload CLI command. For more information, see Load testing.

To reproduce the load, follow these steps:

  1. Initialize the tables for the workload test:

    ydb workload kv init --min-partitions 1 --auto-partition 0


    We deliberately disable automatic partitioning for the created tables by using the --min-partitions 1 --auto-partition 0 options.

  2. Emulate the standard workload on the YDB cluster:

    ydb workload kv run select -s 600 -t 100


    We ran a simple load type using a YDB database as a key-value storage. Specifically, we used the select load to create SELECT queries and retrieve rows based on an exact match of the primary key.

    The -t 100 parameter is used to run the test in 100 threads.

  3. Overload the YDB cluster:

    ydb workload kv run select -s 1200 -t 250


    As soon as the first test ended, we ran the same load test in 250 threads to simulate the overload.
