Decommissioning groups using virtual groups

How it works

Physical storage groups are a limited resource in a cluster: their number is determined by the cluster size, and they cannot be deleted as long as they store data. This can lead to a situation where there are not enough groups to create a new database or expand an existing one, and space on physical disks cannot be freed because old groups contain data.

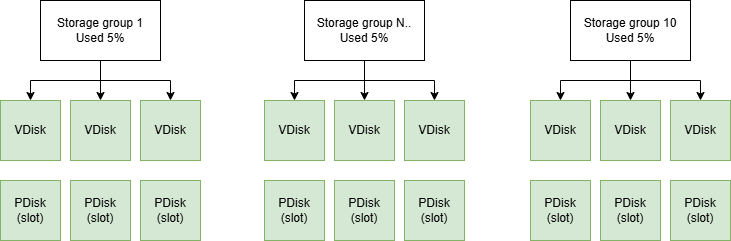

Consider an example: a database uses 10 storage groups. Each of these groups contains some amount of user data, but they are only 5% full. Throughput is also not fully utilized. As a result, all groups are formally occupied, and when trying to create a new database, a new storage group cannot be allocated — there are no more free slots on PDisks. At the same time, existing groups are used inefficiently.

In such a situation, the task arises to free up some of the storage groups (decommission them) from the current database in order to return them to the pool of available resources for subsequent use.

To solve this problem, a storage group decommission mechanism is used. As part of this mechanism, one new virtual storage group is created for the original physical group, which replaces this physical group. After performing the operation, the system moves to the following state:

• The original physical storage group is replaced by a virtual one.
• Data is copied from the source group to the remaining physical groups of the cluster (increasing their usage).
• The virtual group stores data in the remaining physical groups of the cluster.
• Resources used by the source group are freed (VDisks are deleted, PDisk slots are freed).

Decommissioning process stages

In the following, by the source physical group we will mean the group over which the decommissioning process is taking place.

Initialization of a virtual storage group and blocking writes to the source physical group

What happens:

• A virtual group is created.
• Writing new data to the source physical group is blocked.
• All new writes start going to the virtual group.

Status: DecommitStatus: PENDING → IN_PROGRESS

Time: Usually fractions of a second

Metadata copying

What happens:

• Metadata of all blobs (information about what data exists, but not the data itself) is copied from the source physical group to the remaining physical storage groups

Status: DecommitStatus: IN_PROGRESS

Time: Usually seconds

Data copying

What happens:

• Data is read from the source physical group.
• Written to the remaining physical groups of the cluster through the virtual group.
• Data is distributed across several groups for balancing.

Status: DecommitStatus: IN_PROGRESS

Time: Depends on the volume of data (can be hours for large groups)

Freeing resources of the source physical group

What happens:

• All data is copied.
• The source physical group and its VDisks are deleted.
• PDisk resources are freed.
• The group is marked as decommissioned.

Status: DecommitStatus: IN_PROGRESS → DONE

Time: Minutes (VDisk deletion)

Prerequisites

The group decommission instructions work if the following conditions are met:

1. A deployed YDB cluster. Deployment instructions are available in the Initial Deployment section.
2. The ydb-dstool utility is installed. Installation instructions are available in the YDB DSTool installation documentation.
3. An authentication token generated for cluster access:

ydb -e grpc://<cluster-endpoint> -d <db_path> --user <user> auth get-token -f > ~/ydb_token

Replace <cluster-endpoint> with your cluster address, <db_path> with the database path, and <user> with the username for authorization.

ydb workload tpcc --path tpcc/10wh init -w 100
ydb workload tpcc --path tpcc/10wh import -w 100

ydb workload tpcc --path tpcc/10wh run -w 100

Starting decommissioning

Selecting a group for decommissioning

Before starting decommissioning, you must select the group (group ID) you want to decommission. You can choose any group, but it is recommended to choose a less busy group — this will help complete the decommissioning process faster. This can be done through the cluster web interface or using the CLI:

ydb-dstool -e <cluster-endpoint> \
  --ca-file <path-to-ca-cert> \
  --token-file ~/ydb_token \
  group list

Command to start

To start decommissioning, run the ydb-dstool command with the group decommit parameter; it will automatically create a virtual group and start the decommissioning process:

ydb-dstool -e grpcs://<cluster-endpoint>:2135 \
  --ca-file <path-to-ca-cert> \
  --token-file ~/ydb_token \
  group decommit \
  --group-ids <GROUP_ID> \
  --database /Root/<database-name> \
  --wait

Command parameters

• -e <endpoint> — cluster address (e.g., grpcs://static-node-1.ydb-cluster.com:2135);
• --ca-file <path> — path to the CA certificate file for TLS connection;
• --token-file <path> — path to the file with the authentication token;
• --group-ids <GROUP_ID> — ID of the group to decommission (multiple groups can be specified separated by spaces);
• --database=<DB> — path to the database or domain where decommissioning is performed (e.g., /Root/database);
• --wait — wait for decommissioning to start; if a start error occurs, the error is displayed on the screen, and decommissioning is cancelled automatically (only when this option is specified).

Command example

ydb-dstool -e grpcs://static-node-1.ydb-cluster.com:2135 \
  --ca-file /home/ubuntu/ansible-11-nov-244/3-nodes-mirror-3-dc/files/TLS/certs/ca.crt \
  --token-file ~/ydb_token \
  group decommit \
  --group-ids 2181038081 \
  --database=/Root/database \
  --wait

Checking decommissioning status

After starting decommissioning, you can check its status using the command:

ydb-dstool -e grpcs://<cluster-endpoint>:2135 \
  --ca-file <path-to-ca-cert> \
  --token-file ~/ydb_token \
  group list --columns GroupId PoolName \
  ErasureSpecies OperatingStatus VDisks_TOTAL BlobDepotId DecommitStatus

In the command output for groups for which the decommissioning procedure was started, an additional DecommitStatus field appears, which can take one of the following values:

• NONE — decommissioning for the specified group is not performed;
• PENDING — group decommissioning is expected but not yet running (a virtual group is being created);
• IN_PROGRESS — group decommissioning is being performed (all writes already go to the virtual group, reads go to the virtual group and the old group);
• DONE — decommissioning is fully completed (the physical group has turned into a virtual one).

Command output example

┌────────────┬────────────────────┬────────────────┬─────────────────┬──────────────┬───────────────────┬────────────────┐
│ GroupId    │ PoolName           │ ErasureSpecies │ OperatingStatus │ VDisks_TOTAL │ BlobDepotId       │ DecommitStatus │
├────────────┼────────────────────┼────────────────┼─────────────────┼──────────────┼───────────────────┼────────────────┤
│ 2181038080 │ /Root/database:ssd │ mirror-3-dc    │ FULL            │ 9            │ 0                 │ NONE           │
│ 2181038081 │ /Root/database:ssd │ mirror-3-dc    │ FULL            │ 0            │ 72075186224038889 │ DONE           │
│ 2181038082 │ /Root/database:ssd │ mirror-3-dc    │ FULL            │ 9            │ 0                 │ NONE           │
│ 2181038083 │ /Root/database:ssd │ mirror-3-dc    │ FULL            │ 9            │ 0                 │ NONE           │
│ 2181038084 │ /Root/database:ssd │ mirror-3-dc    │ FULL            │ 9            │ 0                 │ NONE           │
│ 2181038085 │ /Root/database:ssd │ mirror-3-dc    │ FULL            │ 9            │ 0                 │ NONE           │
│ 2181038086 │ /Root/database:ssd │ mirror-3-dc    │ FULL            │ 9            │ 0                 │ NONE           │
│ 2181038087 │ /Root/database:ssd │ mirror-3-dc    │ FULL            │ 9            │ 0                 │ NONE           │
└────────────┴────────────────────┴────────────────┴─────────────────┴──────────────┴───────────────────┴────────────────┘

Note that in the above output example for group 2181038081, the number of VDisks has changed (it became 0), the virtual group ID appeared in the BlobDepotId field, and the decommissioning status (DecommitStatus) changed to DONE. This reflects the successful completion of the decommissioning procedure for this group.
