Deploying YDB Cluster with Ansible

This guide outlines the process of deploying a YDB cluster on a group of servers using Ansible. This is the recommended approach for bare-metal or virtual machine environments.

Prerequisites

Server Setup

The recommended setup to get started is 3 servers with 3 disk drives for user data each. For reliability purposes, each server should have as independent infrastructure as possible: they'd better be each in a separate datacenter or availability zone, or at least in different server racks.

For large-scale setups, it is recommended to use at least 9 servers for highly available clusters (mirror-3-dc) or 8 servers for single-datacenter clusters (block-4-2). In these cases, servers can have only one disk drive for user data each, but they'd better have an additional small drive for the operating system. You can learn about redundancy models available in YDB from the YDB cluster topology article. During operation, the cluster can be expanded without suspending user access to the databases.

If you plan to use virtual machines in a public cloud provider, consider following Deploy Infrastructure for YDB Cluster using Terraform.

Software Setup

To work with the project on a local (intermediate or installation) machine, you will need:

• Python 3 version 3.10+
• Ansible core version 2.15.2 or higher
• A working directory on a server with SSH access to all cluster servers

If Ansible is already installed, you can move on to the step "Configuring the Ansible project". If Ansible is not yet installed, install it using one of the following methods:

Configure the Ansible Project

Install YDB Ansible Playbooks

$ cat <<EOF > requirements.yaml
roles: []
collections:
  - name: git+https://github.com/ydb-platform/ydb-ansible
    type: git
    version: main
EOF
$ ansible-galaxy install -r requirements.yaml

$ ansible-galaxy collection install git+https://github.com/ydb-platform/ydb-ansible.git

Configure Ansible

Create ansible.cfg with Ansible configuration that makes sense for your environment. Refer to Ansible Configuration Reference for more details on this. The further guide assumes that the ./inventory subdirectory of the working directory is configured to be used for inventory files.

[defaults]
conditional_bare_variables = False
force_handlers = True
gathering = explicit
interpreter_python = /usr/bin/python3
inventory = ./inventory
pipelining = True
private_role_vars = True
timeout = 5
vault_password_file = ./ansible_vault_password_file
verbosity = 1
log_path = ./ydb.log

[ssh_connection]
retries = 5
timeout = 60

Create the Primary Inventory File

Create a inventory/50-inventory.yaml file using one of the templates below depending on the chosen YDB cluster topology:

all:
  children:
    ydb:
      # Servers
      hosts:
        static-node-1.ydb-cluster.com:
          location:
            data_center: 'zone-a'
        static-node-2.ydb-cluster.com:
          location:
            data_center: 'zone-b'
        static-node-3.ydb-cluster.com:
          location:
            data_center: 'zone-c'
      vars:
        # Ansible
        ansible_user: ubuntu
        ansible_ssh_private_key_file: "~/ydb"

        # System
        system_timezone: UTC
        system_ntp_servers: pool.ntp.org

        # Nodes
        ydb_version: "25.1.1"
        ydb_storage_node_cores: 8
        ydb_database_node_cores: 8

        # Storage
        ydb_database_storage_groups: 8
        ydb_disks:
          - name: /dev/vdb
            label: ydb_disk_1
          - name: /dev/vdc
            label: ydb_disk_2
          - name: /dev/vdd
            label: ydb_disk_3
        ydb_allow_format_drives: true # replace with false after the initial setup

        # Database
        ydb_user: root
        ydb_domain: Root
        ydb_database_name: database
        ydb_config:
          erasure: mirror-3-dc
          fail_domain_type: disk
          default_disk_type: SSD
          security_config:
            enforce_user_token_requirement: true

all:
  children:
    ydb:
      # Servers
      hosts:
        static-node-1.ydb-cluster.com:
          location:
            data_center: 'zone-a'
            rack: 'rack-1'
        static-node-2.ydb-cluster.com:
          location:
            data_center: 'zone-a'
            rack: 'rack-2'
        static-node-3.ydb-cluster.com:
          location:
            data_center: 'zone-a'
            rack: 'rack-3'
        static-node-4.ydb-cluster.com:
          location:
            data_center: 'zone-b'
            rack: 'rack-4'
        static-node-5.ydb-cluster.com:
          location:
            data_center: 'zone-b'
            rack: 'rack-5'
        static-node-6.ydb-cluster.com:
          location:
            data_center: 'zone-b'
            rack: 'rack-6'
        static-node-7.ydb-cluster.com:
          location:
            data_center: 'zone-c'
            rack: 'rack-7'
        static-node-8.ydb-cluster.com:
          location:
            data_center: 'zone-c'
            rack: 'rack-8'
        static-node-9.ydb-cluster.com:
          location:
            data_center: 'zone-c'
            rack: 'rack-9'
      vars:
        # Ansible
        ansible_user: ubuntu
        ansible_ssh_private_key_file: "~/ydb"

        # System
        system_timezone: UTC
        system_ntp_servers: pool.ntp.org

        # Nodes
        ydb_version: "25.1.1"
        ydb_storage_node_cores: 8
        ydb_database_node_cores: 8

        # Storage
        ydb_database_storage_groups: 8
        ydb_disks:
          - name: /dev/vdb
            label: ydb_disk_1
        ydb_allow_format_drives: true # replace with false after the initial setup

        # Database
        ydb_user: root
        ydb_domain: Root
        ydb_database_name: database
        ydb_config:
          erasure: mirror-3-dc
          default_disk_type: SSD
          security_config:
            enforce_user_token_requirement: true

all:
  children:
    ydb:
      # Servers
      hosts:
        static-node-1.ydb-cluster.com:
          location:
            rack: 'rack-1'
        static-node-2.ydb-cluster.com:
          location:
            rack: 'rack-2'
        static-node-3.ydb-cluster.com:
          location:
            rack: 'rack-3'
        static-node-4.ydb-cluster.com:
          location:
            rack: 'rack-4'
        static-node-5.ydb-cluster.com:
          location:
            rack: 'rack-5'
        static-node-6.ydb-cluster.com:
          location:
            rack: 'rack-6'
        static-node-7.ydb-cluster.com:
          location:
            rack: 'rack-7'
        static-node-8.ydb-cluster.com:
          location:
            rack: 'rack-8'
      vars:
        # Ansible
        ansible_user: ubuntu
        ansible_ssh_private_key_file: "~/ydb"

        # System
        system_timezone: UTC
        system_ntp_servers: pool.ntp.org

        # Nodes
        ydb_version: "25.1.1"
        ydb_storage_node_cores: 8
        ydb_database_node_cores: 8

        # Storage
        ydb_database_storage_groups: 8
        ydb_disks:
          - name: /dev/vdb
            label: ydb_disk_1
        ydb_allow_format_drives: true # replace with false after the initial setup

        # Database
        ydb_user: root
        ydb_domain: Root
        ydb_database_name: database
        ydb_config:
          erasure: block-4-2
          default_disk_type: SSD
          security_config:
            enforce_user_token_requirement: true

Mandatory settings to adjust for your environment in the chosen template:

1. Server hostnames. Replace static-node-*.ydb-cluster.com in all.children.ydb.hosts with the real FQDNs.
2. Server locations. The names in data_center and rack in all.children.ydb.hosts.location are arbitrary, but they should match between servers only if they are indeed located in the same datacenter (or availability zone) and rack, respectively.
3. Filesystem paths to block devices in all.children.ydb.vars.ydb_disks. The template assumes /dev/vda is for the operating system and the following disks like /dev/vdb are for YDB storage layer. Disk labels are created by the playbooks automatically and their names can be arbitrary.
4. Ansible-related settings with all.children.ydb.ansible_ prefix like username and private key to use for ssh. Add more of them like ansible_ssh_common_args as necessary.

Recommended settings to adjust:

• ydb_domain. It will be the first path component for all scheme objects in the cluster. For example, you could put your company name there, cluster region, etc.
• ydb_database_name. It will be the second path component for all scheme objects in the database. For example, you could put the use case or project name there.
• default_disk_type. If you are using NVMe or rotating HDD drives, change this setting to NVME or ROT, respectively.
• ydb_config:
  • Any YDB settings can be adjusted via this field, see YDB cluster configuration for more details.
  • YDB playbooks automatically set some YDB settings based on Ansible inventory (like hosts or TLS-related settings), if you configure them explicitly in ydb_config it will have a priority.
  • If you prefer to keep YDB-specific settings separate from the Ansible inventory, replace this whole setting with a string containing file path to a separate YAML file with YDB configuration.
• ydb_storage_node_cores and ydb_database_node_cores. If your server has more than 16 CPU cores, increase these so they sum up to the actual available number. If you have over 64 cores per server, consider running multiple database nodes per server using ydb_database_nodes_per_server. Aim for $ydb\_storage\_node\_cores + ydb\_database\_nodes\_per\_server \times ydb\_database\_node\_cores = available\_cores$.

Changing the root User Password

Next, you can set the password for the initial user specified in the ydb_user setting (root by default). This user will initially have the full access rights in the cluster, but this can be later adjusted if necessary. Create inventory/99-inventory-vault.yaml with the following contents (replace <password> with the actual password):

all:
  children:
    ydb:
      vars:
        ydb_password: <password>

Encrypt this file using the command ansible-vault encrypt inventory/99-inventory-vault.yaml. This would require you to either manually enter the encryption password (which can be different) or have vault_password_file Ansible setting configured. See Ansible Vault documentation for more details on how this works.

Prepare the YDB Configuration File

Deploying the YDB Cluster

After all the preparations explained above are complete, the actual initial cluster deployment is as simple as running the following command from the working directory:

ansible-playbook ydb_platform.ydb.initial_setup

Shortly after start, you'll be asked to confirm full wipe of the configured disk drives. Then, it can take tens of minutes to finish deployment depending on the environment and settings. Under the hood, this playbook follows roughly the same steps as explained in instructions for manual YDB cluster deployment.

Checking the Cluster State

On the last step, the playbook will run a few test queries using real temporary tables to double-check if everything is indeed working as intended. On success, you'll see the ok status, failed=0 for each server, and results of these test queries (3 and 6) if the playbook output is set to be verbose enough.

...

TASK [ydb_platform.ydb.ydbd_dynamic : run test queries] *******************************************************************************************************************************************************
ok: [static-node-1.ydb-cluster.com] => (item={'instance': 'a'}) => {"ansible_loop_var": "item", "changed": false, "item": {"instance": "a"}, "msg": "all test queries were successful, details: {\"count\":3,\"sum\":6}\n"}
ok: [static-node-1.ydb-cluster.com] => (item={'instance': 'b'}) => {"ansible_loop_var": "item", "changed": false, "item": {"instance": "b"}, "msg": "all test queries were successful, details: {\"count\":3,\"sum\":6}\n"}
ok: [static-node-2.ydb-cluster.com] => (item={'instance': 'a'}) => {"ansible_loop_var": "item", "changed": false, "item": {"instance": "a"}, "msg": "all test queries were successful, details: {\"count\":3,\"sum\":6}\n"}
ok: [static-node-2.ydb-cluster.com] => (item={'instance': 'b'}) => {"ansible_loop_var": "item", "changed": false, "item": {"instance": "b"}, "msg": "all test queries were successful, details: {\"count\":3,\"sum\":6}\n"}
ok: [static-node-3.ydb-cluster.com] => (item={'instance': 'a'}) => {"ansible_loop_var": "item", "changed": false, "item": {"instance": "a"}, "msg": "all test queries were successful, details: {\"count\":3,\"sum\":6}\n"}
ok: [static-node-3.ydb-cluster.com] => (item={'instance': 'b'}) => {"ansible_loop_var": "item", "changed": false, "item": {"instance": "b"}, "msg": "all test queries were successful, details: {\"count\":3,\"sum\":6}\n"}
PLAY RECAP ****************************************************************************************************************************************************************************************************
static-node-1.ydb-cluster.com : ok=167  changed=80   unreachable=0    failed=0    skipped=167  rescued=0    ignored=0
static-node-2.ydb-cluster.com : ok=136  changed=69   unreachable=0    failed=0    skipped=113  rescued=0    ignored=0
static-node-3.ydb-cluster.com : ok=136  changed=69   unreachable=0    failed=0    skipped=113  rescued=0    ignored=0

As a result of executing the ydb_platform.ydb.initial_setup playbook, a YDB cluster will be created. It will contain a domain named with the ydb_domain setting (Root by default), a database named with the ydb_database_name setting (database by default), and an initial user named with the ydb_user setting (root by default).

Optional Next Steps

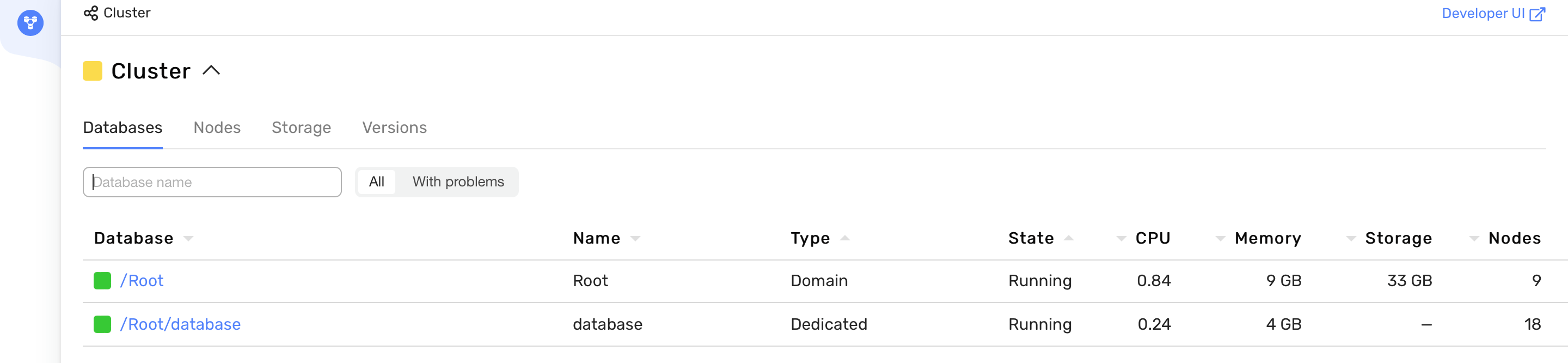

The easiest way to explore the newly deployed cluster is by using Embedded UI running on port 8765 of each server. In the likely case that you don't have direct access to this port from your browser, you can set up SSH tunneling. For this, execute the command ssh -L 8765:localhost:8765 -i <private-key> <user>@<any-ydb-server-hostname> on your local machine (add more options if necessary). After successfully establishing the connection, you can navigate to the localhost:8765 URL via browser. The browser might ask you to accept a security exception. An example of how it might look like:

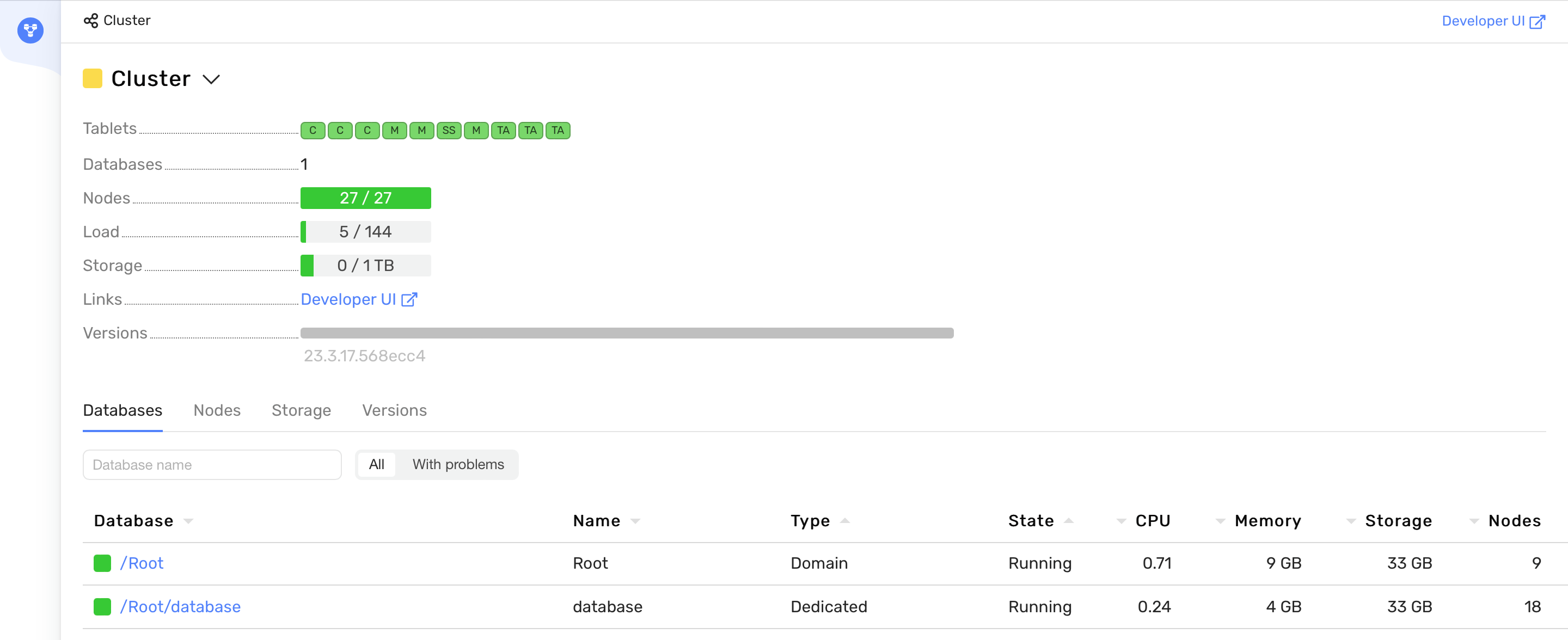

After successfully creating the YDB cluster, you can check its state using the following Embedded UI page: http://localhost:8765/monitoring/cluster/tenants. It might look like this:

This section displays the following parameters of the YDB cluster, reflecting its state:

• Tablets – a list of running tablets. All tablet state indicators should be green.
• Nodes – the number and state of storage and database nodes launched in the cluster. The node state indicator should be green, and the number of created to launched nodes should be equal. For example, 18/18 for a nine-node cluster with a single database node per server.

The Load indicators (amount of RAM used) and Storage (amount of disk space used) should also be green.

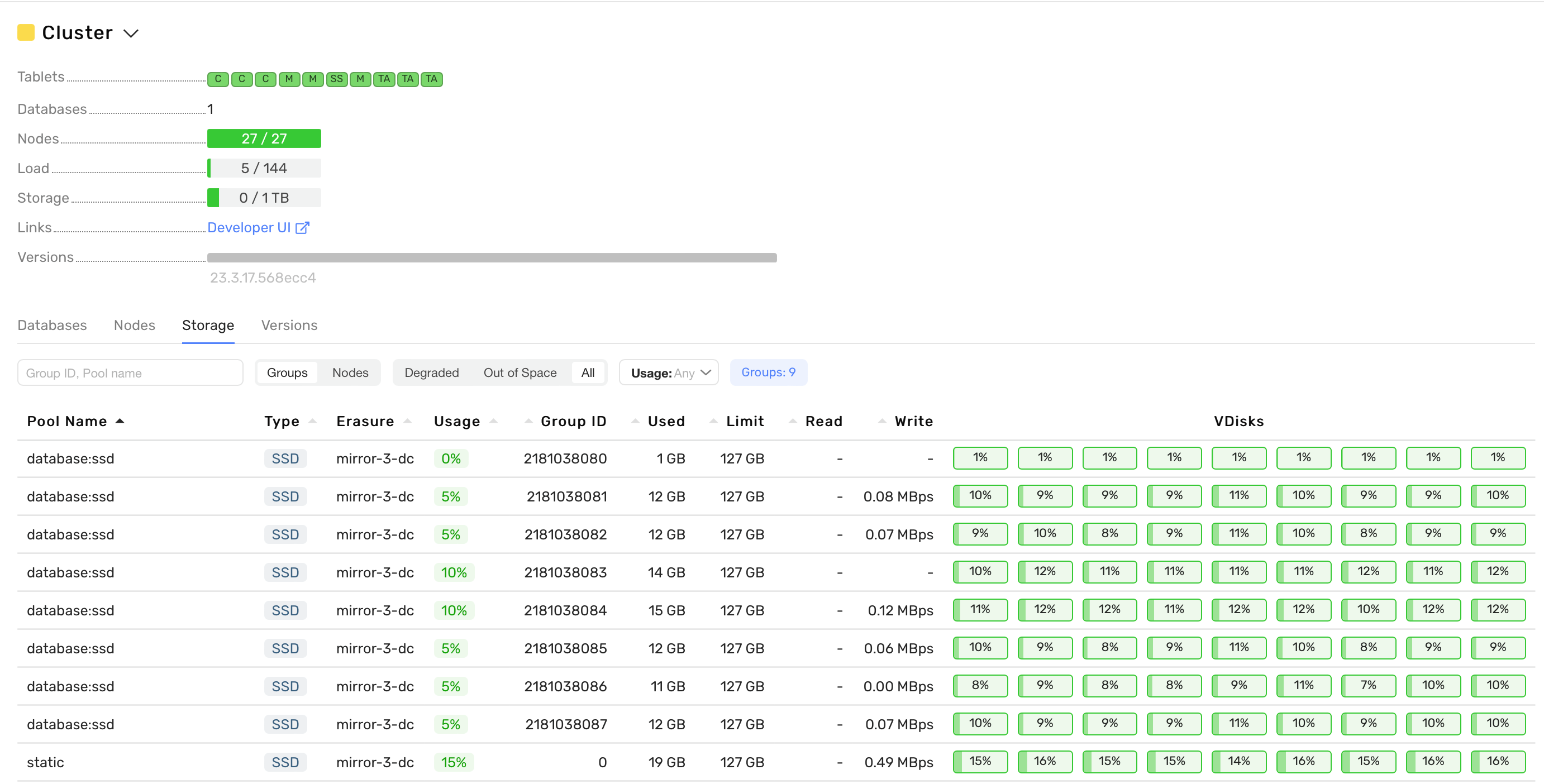

You can check the state of the storage group in the storage section – http://localhost:8765/monitoring/cluster/storage:

The VDisks indicators should be green, and the state status (found in the tooltip when hovering over the Vdisk indicator) should be Ok. More about the cluster state indicators and monitoring can be read in the article YDB Monitoring.

Cluster Testing

You can test the cluster using the built-in load tests in YDB CLI. To do this, install YDB CLI and create a profile with connection parameters, replacing the placeholders:

ydb \
  config profile create <profile-name> \
  -d /<ydb-domain>/<ydb-database> \
  -e grpcs://<any-ydb-cluster-hostname>:2135 \
  --ca-file $(pwd)/files/TLS/certs/ca.crt \
  --user root \
  --password-file <path-to-a-file-with-password>

Command parameters and their values:

• config profile create – This command is used to create a connection profile. You specify the profile name. More detailed information on how to create and modify profiles can be found in the article Creating and updating profiles.
• -e – Endpoint, a string in the format protocol://host:port. You can specify the FQDN of any cluster node and omit the port. By default, port 2135 is used.
• --ca-file – Path to the root certificate for connections to the database using grpcs.
• --user – The user for connecting to the database.
• --password-file – Path to the password file. Omit this to enter the password manually.

You can check if the profile has been created using the command ydb config profile list, which will display a list of profiles. After creating a profile, you need to activate it with the command ydb config profile activate <profile-name>. To verify that the profile has been activated, you can rerun the command ydb config profile list – the active profile will have an (active) mark.

To execute a YQL query, you can use the command ydb sql -s 'SELECT 1;', which will return the result of the SELECT 1 query in table form to the terminal. After checking the connection, you can create a test table with the command:
ydb workload kv init --init-upserts 1000 --cols 4. This will create a test table kv_test consisting of 4 columns and 1000 rows. You can verify that the kv_test table was created and filled with test data by using the command ydb sql -s 'select * from kv_test limit 10;'.

The terminal will display a table of 10 rows. Now, you can perform cluster performance testing. The article Key-Value load describes multiple types of workloads (upsert, insert, select, read-rows, mixed) and the parameters for their execution. An example of executing the upsert test workload with the parameter to print the execution time --print-timestamp and standard execution parameters is: ydb workload kv run upsert --print-timestamp:

Window Txs/Sec Retries Errors  p50(ms) p95(ms) p99(ms) pMax(ms)        Timestamp
1          727 0       0       11      27      71      116     2024-02-14T12:56:39Z
2          882 0       0       10      21      29      38      2024-02-14T12:56:40Z
3          848 0       0       10      22      30      105     2024-02-14T12:56:41Z
4          901 0       0       9       20      27      42      2024-02-14T12:56:42Z
5          879 0       0       10      22      31      59      2024-02-14T12:56:43Z
...

After completing the tests, the kv_test table can be deleted with the command: ydb workload kv clean. More details on the options for creating a test table and tests can be read in the article Key-Value load.
