Vector index type: vector_kmeans_tree

Vector indexes are specialized data structures that enable efficient vector search in multidimensional spaces. They are described in the overview; this article details the vector_kmeans_tree vector index type.

Creating the vector index

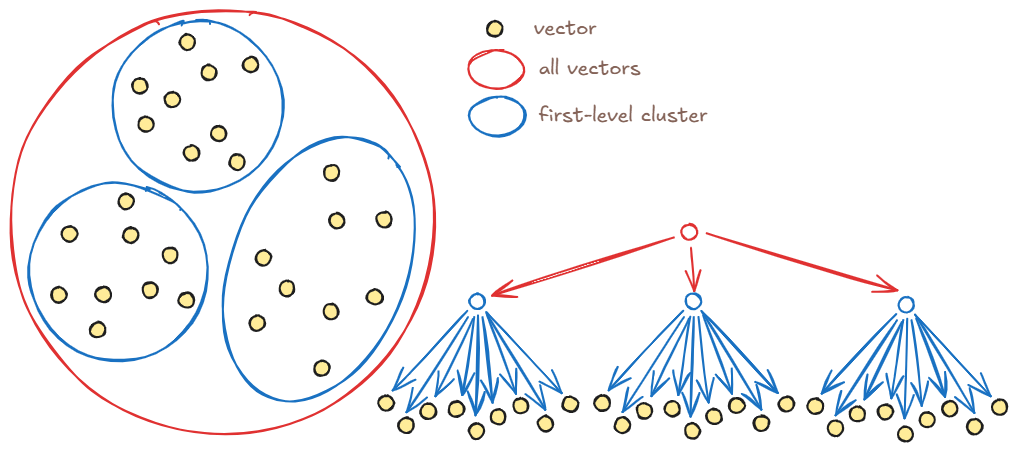

The vector_kmeans_tree algorithm recursively partitions all vectors to be searched into clusters using K-means. First, vectors are split into the number of clusters specified when creating the index via the vector index parameter clusters. For example, first-level clusters might look like this:

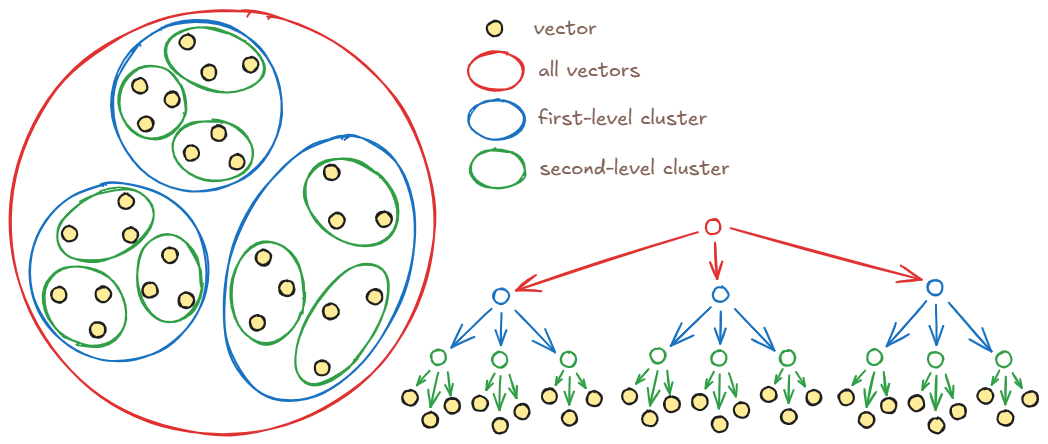

Each cluster is then split into the same number of clusters. Because each first-level cluster contains second-level clusters, a cluster tree is formed. The number of levels in the tree is set by the vector index parameter levels. For example, second-level clusters look like this:

The vector index tree will have three first-level clusters, each containing three second-level clusters, each of which in turn contains three vectors.

Search in the vector index

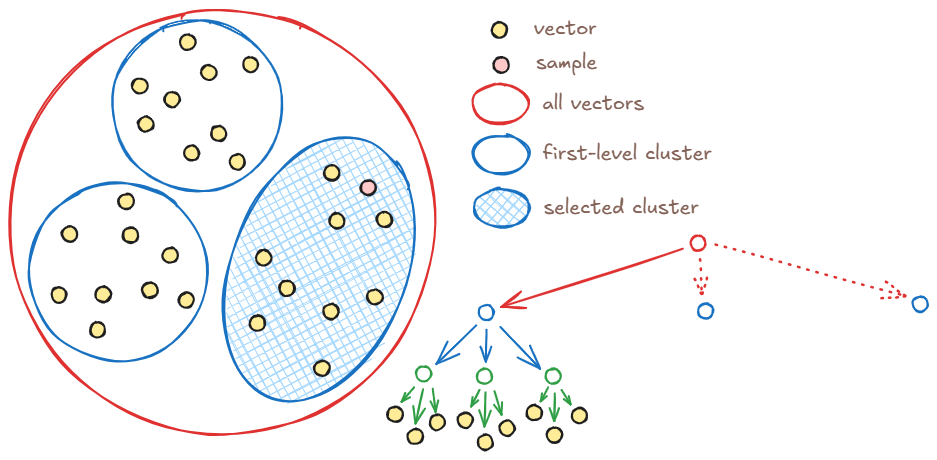

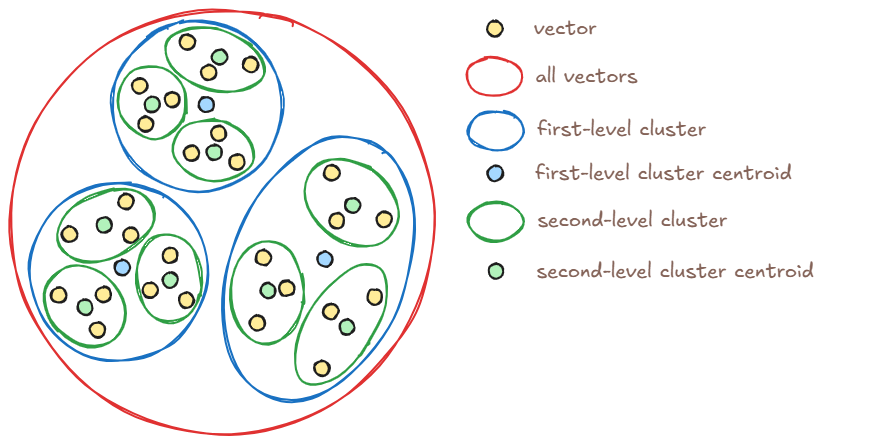

For search in a vector_kmeans_tree vector index, one of several clusters is chosen at each level; that cluster contains vectors similar to the query vector. To choose the right cluster, a centroid — the arithmetic mean of all vectors in the cluster — is computed and stored for each cluster.

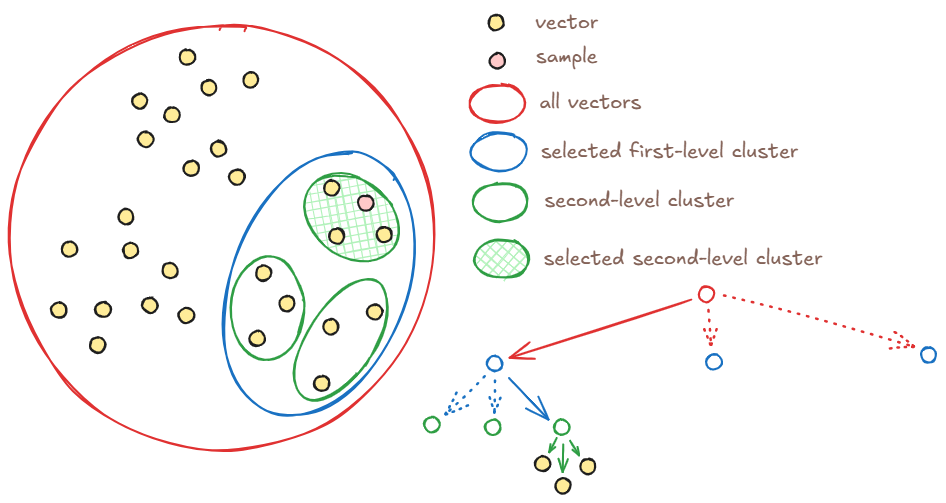

After choosing a cluster at one level, YDB moves to the next level and considers the clusters that belong to the cluster chosen at the previous level. YDB compares distances between cluster centroids and the query vector and selects the cluster with the smallest distance. Approximate search assumes that if a cluster’s centroid is closest to the query, the vectors in that cluster are also closest to the query.

Each first-level cluster is split into second-level clusters, and so on. The algorithm “descends” the tree step by step, each time selecting a smaller cluster until it reaches a leaf cluster that holds vectors instead of centroids. YDB scans these vectors and returns the requested number of nearest neighbors. By limiting the number of clusters at each level, YDB keeps search complexity at O(1).

If a leaf cluster has fewer vectors than requested, YDB returns all vectors found. To improve recall in such cases, use the KMeansTreeSearchTopSize parameter described below.

Index parameters

YDB lets you configure the number of levels in the vector index with the levels parameter and the number of clusters per level with the clusters parameter. Choose these values based on the expected number of vectors and cluster characteristics: network latency between nodes, network throughput, and CPU performance.

Clusters in the vector index tree are stored in distributed storage. On each step down the tree, YDB reads from distributed storage and receives binary data with the list of vectors over the network. The time for this operation depends on datacenter hardware, network load, and the amount of data transferred between clusters.

Choosing one cluster at a level requires scanning all centroid vectors and computing the distance to the query. You can estimate scan speed on your hardware using this query.

For small datasets, set levels to 1. For billions of vectors, you may need to increase it to 4 and tune clusters for your hardware.

The optimal number of clusters largely depends on server performance — how many vectors they can scan per second. So after choosing levels from expected data volume and network latency, tune clusters using performance tests.

For most hardware configurations, 20 to 50 clusters is recommended; this range is chosen for typical 256-dimensional vectors and balances performance and search recall.

Also aim for a configuration where the leaf clusters of the vector index contain at most 512 vectors, so that scanning them stays within milliseconds.

For example, if you expect 10 million vectors, set levels to 3 and clusters to 50. The vector index will look like this:

• Level 1: 50 clusters of 200,000 vectors each;
• Level 2: each level-1 cluster split into 50 clusters of 4,000 vectors each;
• Level 3: each level-2 cluster split into 50 clusters of 80 vectors each.

Automatic parameter selection

You can omit the clusters and levels parameters when creating an index. In that case YDB selects them automatically based on the number of vectors in the table. Explicitly specified parameters are never overridden.

Search recall tuning

If a cluster’s centroid is closest to the query, the vectors in that cluster are usually closer to the query than vectors in other clusters. For complex data topologies this may not hold, so YDB allows scanning vectors in more than one cluster per level.

The number of clusters participating in search is set by the KMeansTreeSearchTopSize parameter. By default it is 1: YDB picks one nearest cluster at the first level, then requests its child clusters at the second level over the network, picks one nearest again, and so on. This parameter is not set at index creation time but for the search.

If you set a larger value, e.g. 3, the system will select three nearest clusters at each level instead of one. Moving to the next level then requires fetching the child vectors of all three selected clusters over the network, from which the next three are chosen. This improves recall but increases network traffic and the number of vectors scanned.

Covering index

By default, the leaf cluster stores not the vectors themselves but only a list of keys of those vectors in the table. Such a list is called a Posting Table — a form of inverted index. Storing references to vectors instead of vectors minimizes the size of the vector index.

However, after finding the leaf cluster, YDB must run a SELECT against the table to fetch the vectors (the exact number depends on the size of the leaf cluster).

Fetching vectors from the leaf cluster can be slow if clusters is too large or the table index does not include the vector column. In such cases you can speed up search by increasing index size: if you make the index covering, vectors are stored in the index. Data is still read over the network from distributed storage, but that is faster than a full query to the indexed table.

A covering index can include not only vectors but any other columns from the indexed table. Then SELECTs on those columns will be faster at the cost of storing an extra copy of their data in the index.

A covering index can be made faster by enabling read from replicas.

Vector index with filtering

Often you need to filter by additional attributes or metadata. A vector index with filtering speeds up queries with WHERE conditions by returning similar objects only among those that match the filter. With such an index, nearest-neighbor search is restricted to rows that satisfy the filter, which keeps performance high on large datasets.

Fast, accurate filtered search is supported at the index structure level. The filtered column must be explicitly listed in the SQL index creation statement.

Filtering is built into the vector index because:

• If you filter before search, you get a set of rows in which to find nearest vectors. A normal vector index can only search over all vectors in the table, not an arbitrary subset. To find nearest vectors, the DB would have to scan all remaining rows and compute distance to the query for each.
• If you filter after search, you may get fewer results than needed and recall drops. You would have to repeat the search with a higher limit, which is also slow. In YDB, filtering is integrated into the vector index structure and algorithm, so rows that do not match the filter are excluded from consideration immediately.

Adaptive clusters

A filtered vector index builds a separate cluster tree for each distinct value of the filtering columns, and different values often contain very different numbers of vectors — from millions down to a few dozen. A single fixed clusters value cannot be optimal for all of them at once: a small value produces large leaf clusters that are slow to scan, while a large value produces many nearly empty clusters, which wastes space and can harm recall.

Adaptive clusters solve this: when enabled, YDB chooses the number of clusters per filtering-column value automatically, based on how many vectors that value actually contains. Values with more vectors get more clusters (up to the clusters value, which acts as the upper bound), and values with few vectors get fewer clusters.

Adaptive clusters are controlled by the adaptive_clusters index parameter:

• adaptive_clusters applies only to filtered indexes (indexes with more than one index column). For non-filtered indexes it has no effect.
• When you create a filtered index without explicitly specifying parameters and YDB selects them automatically, adaptive clusters are enabled by default.
• When you specify index parameters explicitly, adaptive_clusters defaults to false; to enable adaptive mode, set adaptive_clusters to true.

In adaptive mode, the clusters parameter is interpreted as the maximum number of clusters for any single filtering-column value. The actual number chosen for each value is derived from its vector count, levels, and overlap_clusters, and is never lower than 2. Values with very few vectors (fewer than 100) always use the minimum of 2 clusters.

Example of creating a filtered index with adaptive clusters:

ALTER TABLE my_table
  ADD INDEX my_index
  GLOBAL USING vector_kmeans_tree
  ON (user, embedding)
  COVER (embedding, data)
  WITH (
    distance=cosine,
    vector_type="float",
    vector_dimension=512,
    clusters=512,
    levels=2,
    adaptive_clusters=true
  );

Here clusters=512 is the upper bound: a user with millions of vectors may get close to 512 clusters, while a user with only a few dozen vectors gets just 2.

Index internals

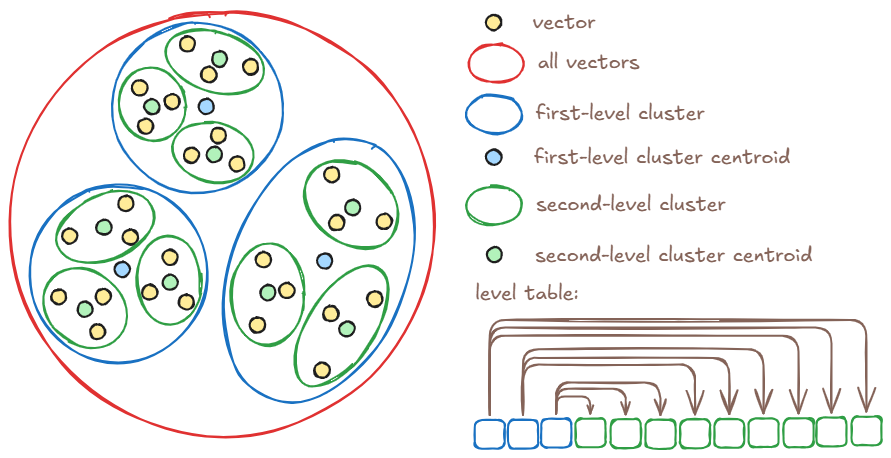

The index is implemented with two extra tables: the level table (indexImplLevelTable) and the posting table (indexImplPostingTable). The level table stores centroids for the cluster tree. YDB queries this table when moving from level to level during vector search. For example, if the vector index is built over 27 vectors with levels=2 and clusters=3, the level table looks like this:

For each centroid in the level table, the parent cluster at the level above is also stored. YDB uses this to request only the centroids that belong to clusters selected at the previous level when moving down.

To avoid re-reading centroids from distributed storage on every query, the level table can be cached in memory on each node — see resource_manager.kqp_level_cache_max_size_bytes in table_service_config.

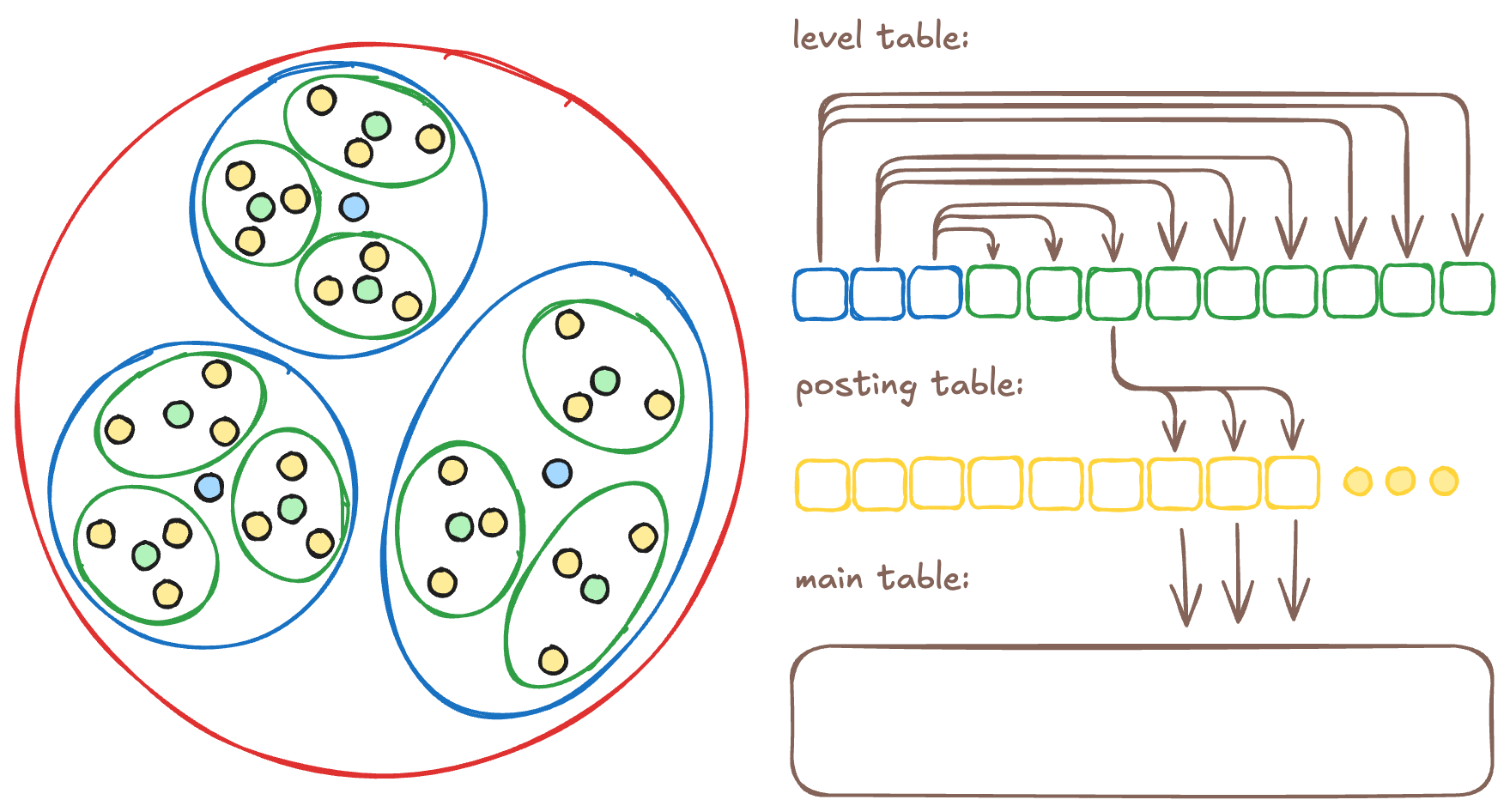

The posting table links the leaf-level centroids in the level table to the vectors in the source table. If a covering index is used, vectors and extra columns specified at index creation are also stored in this table:

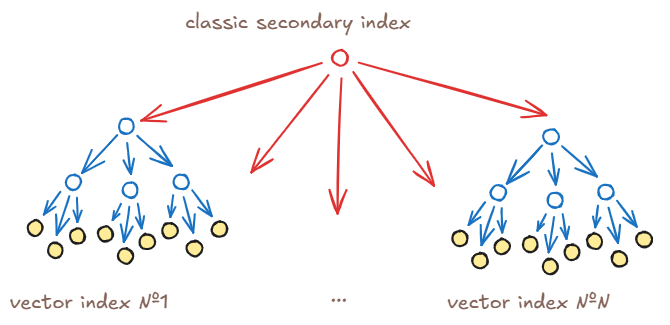

With a filtered index, a regular secondary index on the filtered columns is added in front of the vector index. A separate vector index is built for each distinct value in the secondary index. The secondary index is stored in an extra relational table, the prefix table (indexImplPrefixTable), and all vector index trees remain in the level table:

Structure of table indexImplLevelTable

The primary key of this table includes the columns __ydb_parent and __ydb_id.

Structure of table indexImplPostingTable

The primary key of this table includes the column __ydb_parent and the columns that form the primary key of the indexed table (id in the example below).

Example structure of indexImplPostingTable with a covering index

With a covering index, the specified columns from the indexed table are copied into indexImplPostingTable. The primary key is the same as for indexImplPostingTable without covering. If the covering index includes the embedding column, the table looks like this:

Example structure of indexImplPrefixTable for a filtered index

With a filtered index, column names and types are copied from the indexed table into indexImplPrefixTable. If the index is filtered by the category_id column, the table looks like this:
